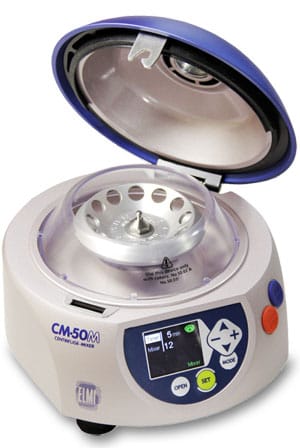

ELMI CM-50MP
The CM-50MP is the same as the CM 50 except that has a special program to do Plasmid extractions.
Overview
In 2013, Elmi’s Fugamix 3 was awarded as the best innovation based product, competing with a large number of products from different industries.
Key Improvements
- Improved 12 level vortexing intensity
- Quieter operation
- New vivid color display
- New imbalance control system with greater tolerance
- Stronger motor, generates less heat
- Patented motor control driver
- Innovative automatic rotor recognition, interface display
- Ultra-smooth vibration-free run, due to unique drive chassis
- Sample-prep mode, individual adjustments of all parameters
- Custom Spin-Mix-Spin mode for an array of applications
- Large buttons for separate vortexing or centrifugation
Key Features of the CM-50M
- Simple, yet exceptionally powerful and versatile centrifuge
- Intense vortex for up to 12 × 0.2 &ndsh; 2 mL tubes with 12 levels of shaking
- Specially-developed shaking mode to imitate hand shaking
- 4 Rotor options with rotor recognition
- Intuitive and clear interface with large color display
- Display preferences include the following:
- Language
- Brightness
- Sleep mode
- Sound volume
- Sample prep Spin-Mix-Spin mode
- Custom mode for up to 9 steps of spinning and mixing
- Short Spin button
- 15300 g
Technical Details of the CM-50M
| Centrifugation speed |
from 1000 up to 15000 |
RPM |
| Maximum centrifugal force |
15300 |
RCF |
| Timer |
from 0.1 up to 99 |
min |
| Number of vortexing modes |
12 |
|
| Custom sample preparation mode |
1 |
|
| Dimensions (L × W × H) |
200 × 180 × 145 |
mm |
| Power supply adapter |
24VDC, 5A |
|
| Weight |
3.1 |
kg |
Rotors for the CM-50M
 |
Specially designed Spin-Mix rotor for 0.2 – 2 mL tubes, that enable mixing and spinning down up to 12 tubes simultaneously |
 |

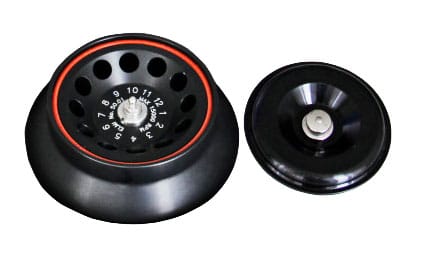

Universal high speed rotor for 12 test tubes 0.2 – 2 mL. Patent pending cover cap insures the optimum air flow and incredibly low sample heating. |
 |

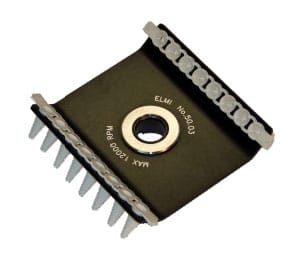

Universal PCR strip rotor for two 0.2 mL standard PCR strips. |
 |
The CM-50M Fugamix-3 features our patented CarbonSpin rotor. This rotor is composed of precisely machined proprietary aluminum alloy, significantly improving efficiency and ventilation.
To reduce the rotors weight while simultaneously increasing efficiency during intensive shake cycles, a custom carbon fiber layer stability ring was implemented.
The dependable design allows the user to spin and vigorously shake any substance, including heavy beads, for as long as the experiment requires.
Rotor is provided with a specially designed lid, that allows to spin tubes with caps open. |
|
|
|
