N-BIOTEK Incubator Shaker
A constant temperature incubator with 70-litre capacity and one built-in shaker. This incubator is widely used for suspension cell culture in micro and molecular biology.
Overview
70-Litre capacity constant temperature incubator with one built-in shaker, this incubator is widely used for suspension cell culture in microbiology, molecular biology. Stacking incubator is easy to install and save your lab space.
Features

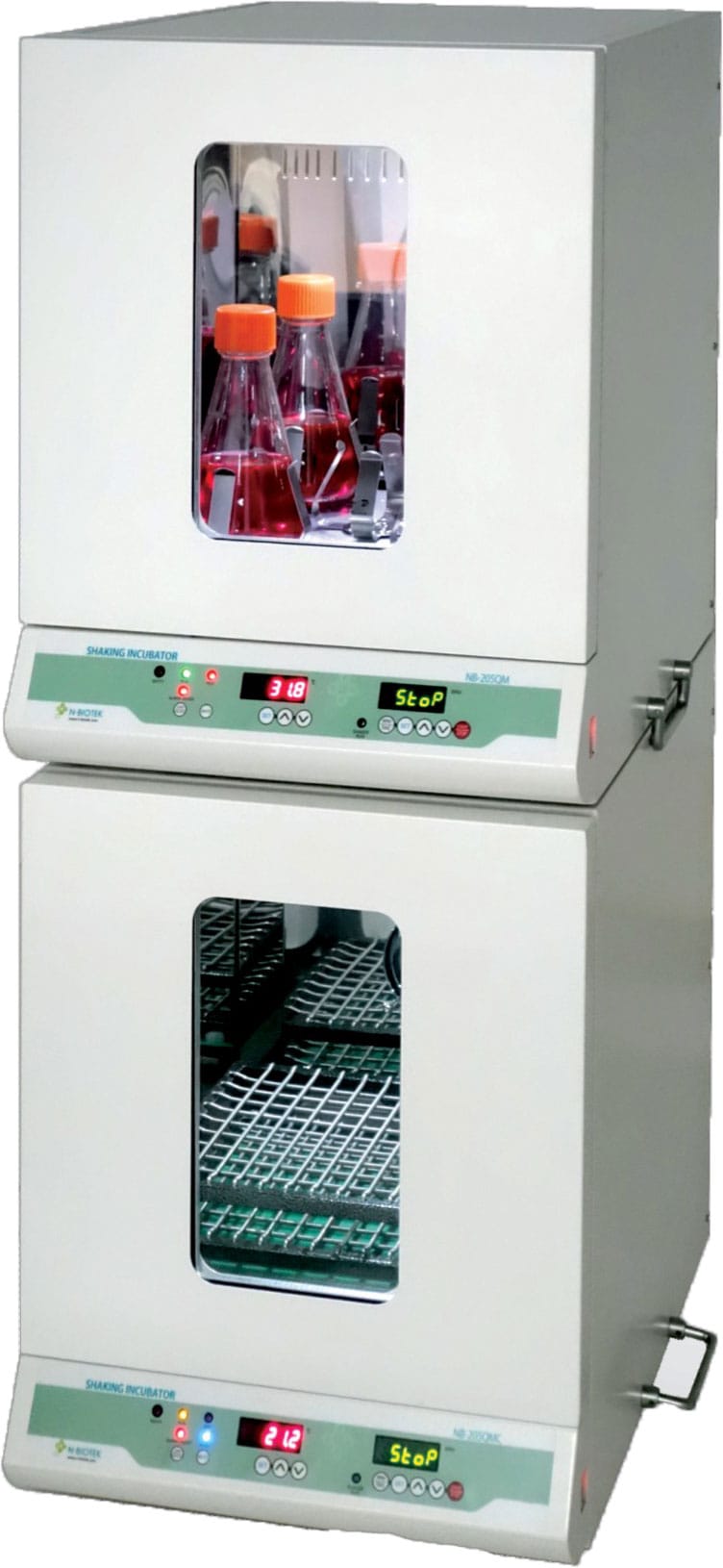

- Suitable size for table-top and double-deck stacking.
- Easy-simple-safe stacking kit allows 2 deck stacking in short time easily.
- Stable shaking and low noise by BLDC magnetic induction drive motor.
- One shaker is built-in and loading capacity is up to 1ea × 2L flask.
- Effective peltier cooling (NB-205QMC only) down to 15 °C at 25 °C (RT).
- Reversible door enable to swtich open position of door.
- Tempered pair glass window and inside LED lamp help to view inside clearly.
- Effective forced air circulation by internal fan.
- Stainless steel chamber for easy clearing and low contamination.
- Alarm rings the moment that the error in temperature, shaker and door occurs.
- Automatic shaker stops and internal lamp is lit when the door is open.
- Safety thermostat prevents overheating.
Specifications
| Items |
NB-205QM |
NB-205QMC |
| Temperature Range |
RT +5 °C – +60 °C at 25 °C RT |
15 °C – ~ +60 °C at 25°C RT |
| Temp. Control Accuracy |
±0.5 °C |
±0.5 °C |
| Heating / Cooling |
Heater (300 W), Cooling Not Available |
Peltier device (72 W × 3 |
| Cireculation Fan |
2 ea. (at back of chamber) |
1 ea. (at centre back of chamber) |
| Internal Lamp |
4 W LED |
4 W LED |
| Operating Temperature |
+5 °C – +35 °C |
+5 °C – +35 °C |
| Display |
Digital display, 5 digit LED |
Digital display, 5 digit LED |
| Shaker |
One built-in shaker |
One built-in shaker |
| Shaking Motion |
Orbital |
Orbital |
| Shaking Speed |
30 – 300 RPM (Upper stacked incubator up to 2000 RPM) |
30 – 300 RPM (Upper stacked incubator up to 2000 RPM) |
| Orbit Size |
22 mm (⇌ 1 inch) |
22 mm (⇌ 1 inch) |
| Dimension of Platform |
300 × 330 mm (inside height: 330 mm) |
300 × 330 mm (inside height: 330 mm) |
| Loading Capacity |
Approx. 4.5 kg (1 L flask × 4 ea., 2 L × 1 ea.) |
Approx. 4.5 kg (1 L flask × 4 ea., 2 L × 1 ea.) |
| Time of Shaker |
00 h 00 min – 47 h 59 min |
00 h 00 min – 47 h 59 min |
| Door |
Reversible one door with glass window |
Reversible one door with glass window |
| Alarm |
Temperature, door, shaker audiable and indicator lamp |
Temperature, door, shaker audiable and indicator lamp |
| Electric Safety Device |
Fuse (built in with one spare) |
Fuse (built in with one spare) |
| Dimensions |
430 mm × 600 mm × 550 mm (W × D × H) |
430 mm × 600 mm × 550 mm (W × D × H) |
| Weight |
Approx. 54.25 kg |
Approx. 49 kg |
| Power Supply |
110 or 230 V / 50/60 Hz |
110 or 230 V / 50/60 Hz |
| Standard Plate |
Base plate with non-slip rubber mat on shaker |
Base plate with non-slip rubber mat on shaker |
|
|
|
