Overview
TW-2.02
The Elmi compact circulating thermostatic water bath TW-2.02 is a compact stainless steel high accuracy heated water bath for a wide variety of laboratory needs.
The compact design makes this water bath easy to handle, disassemble and clean.
Features:
- Defined temperature control in the bath with high accuracy
- Automatic water level detection for heater protection
- Variable water circulation speed
- External water circulation pump for heating external objects
TW-2.03

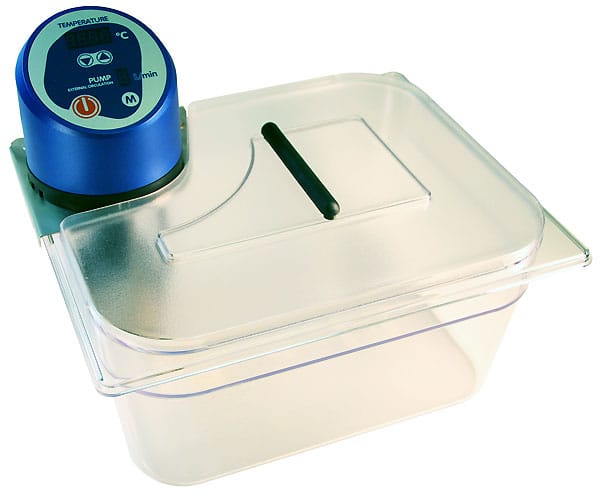

The Elmi compact circulating thermostatic water bath TW-2.03 is a plastic high accuracy heated water baths for a wide variety of laboratory needs.
The compact design makes this water bath easy to handle, disassemble and clean.
The Elmi MS-01 four position magnetic stirrer is especially useful with the TW-2.03 water bath, as it allows stirring under precise temperature control.
Features:
- Defined temperature control in the bath with high accuracy
- Automatic water level detection for heater protection
- Variable water circulation speed
- External water circulation pump for heating external objects
- Plastic construction to allow use of magnetic stirrers.

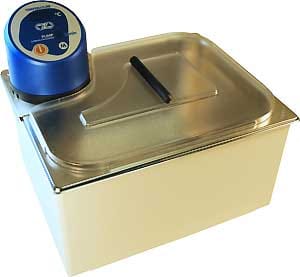

TW-2.02 Heated Stainless Steel Water Bath

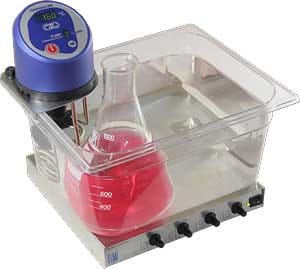

TW-2.03 Heated Clear Plastic Water Bath, sitting on an Elmi Four Position MS-01 Magnetic Stirrer
| Model: |
TW-2.02 |
TW-2.03 |
| Bath material: |
Stainless steel |
Clear plastic |
| Temperature range of bath: (°C) |
Ambient to 100 |
Ambient to 90 |
| Accuracy of temperature stability in the bath: (°C) |
± 0.1 |
± 0.1 |
| Maximum time to reach set temperature: (min) |
50 |
50 |
| Maximum bath capacity: (L) |
8.5 |
8.5 |
| Temperature stabilisation above ambient: (°C) |
3 |
3 |
| Water circulation volume range: (L/min) |
1 – 4.5 |
1 – 4.5 |
| Voltage and frequency: (V/Hz) |
110/60 |
110/60 |
| Power consumption: (kW) |
Up to 1.5 |
Up to 1.5 |
| Dimensions: W × D × H (mm) |
320 × 265 × 260 |
320 × 265 × 260 |
| Weight: (kg) |
4.9 |
2.8 |
