A&D GX Scientific Weighing Balances
A high precision range of top pan balances featuring optimum weighing and settling time.
Overview
The GX features a standard RS232 data output, internal calibration and multiple weighing units. A percentage and counting mode is also available.
A&D’s revolutionary Super Hybrid Sensor (SHS) technology improves response speed, accuracy and minimises maintenance costs. SHS combines the best of magnetic force restoration and single point parallelogram load sensing technologies. Its unique design provides the fastest response speed in its class – just 1 second!
And if the time ever comes when the SHS needs repair, you just replace one of three parts – there is no need to replace the whole sensor! This translates to Minimum Maintenance Costs.
An additional benefit of the SHS is that the GX automatically performs self calibration using the internal mass when the balance detects ambient temperature changes.
Features
- New patented weighing mechanism Super Hybrid Sensor (SHS)
- Trade approved by NMI (except for GX-800 & GX-1000)
- Five years warranty
- Ultra Fast response speed – typically just one second
- Standard RS232C serial data interface
- Rugged aluminium alloy enclosure
- 15 weighing units plus counting, percentage and user programmable
- Wide range of capacities and resolutions
- Built in under hook capability
- Counting has A.C.A.I. feature for optimum results
- Overload protected to take hard use
- Automatically adjusts the environmental settings to match your site
- Last digit blanking via keypad if desired
- GLP data output format to suit quality systems
- Sealed keypad gives IP-54 protection level
- One touch calibration using internal motor driven mass
- Built in animal weighing software
- Breeze break is standard with the GX-200/400/600
- Supplied with free Windows Communication Tools (WinCT) software
Details
Feature
Description
Example
Vacuum Fluorescent Display
Bright, bold, blue the VFD is virtually unmistakable from any viewing angle.
Allows you to quickly and accurately determine the weight of any live or unstable subject. Optional animal weighing pan (GX-12) is available.
Automatic Adjustable Environment Setting
Adapts to the most suitable Environment Response Setting automatically with one-touch key operation. The response annunciator displays “FAST”, “MID” and “SLOW.” (GX).
Manual Response Adjustment
Can be set by pressing the MODE key and response speed can be adjusted to FAST, MID or SLOW.
Standard Comparator Function
Offers increased flexibility and compatibility for a vast number of applications. You can input a target weight and weigh heavier or lighter items using either the keyboard or by placing samples on the pan. Hi, OK or div will be indicated on the display to show the comparison results (GX-04 Comparator output).
Automatic Counting Accuracy Improvement (ACAI)
Is a novel and useful approach to ensuring the utmost in performance when counting even the smallest of items. ACAI automatically updates and refines the average piece weight used to determine the total quantity.
Facilitates an effective and quick comparison of a sample or commodity against a known reference mass. Simply place an object on the pan to register its weight as 100%. Place another object on the pan to compare weight in percentage mode.
Overall Capacity Indication
Is a unique and helpful feature. By indicating how much of the balance's capacity has been filled, the risk of overloading the balance is minimized.
Models
If the model you would like to purchase is listed below but not available in the dropdown menu please enquire with us directly.
| Model |
Capacity |
| GX-200 |
210 g × 0.001 g |
| GX-400 |
410 g × 0.001 g |
| GX-600 |
610 g × 0.001 g |
| GX-800 |
800 g × 0.001 g |
| GX-1000 |
1000 g × 0.001 g |
| GX-2000 |
2100 g × 0.001 g |
| GX-4000 |
4100 g × 0.01 g |
| GX-6100 |
6100 g × 0.01 g |
| GX-8000 |
8100 g × 0.1 g |
GF/GX Series Comparison
| Main Feature |
GX Series |
GF Series |
| SHS (Super Hybrid Sensor) |
|
|
| Internal Calibration |
|
|
| VFD Display |
|
|
| WinCT |
|
|
| Data Memory Function |
|
|
| Automatic Adjustable Environment Setting |
|
(Manual) |
| Auto Self Checking |
|
|

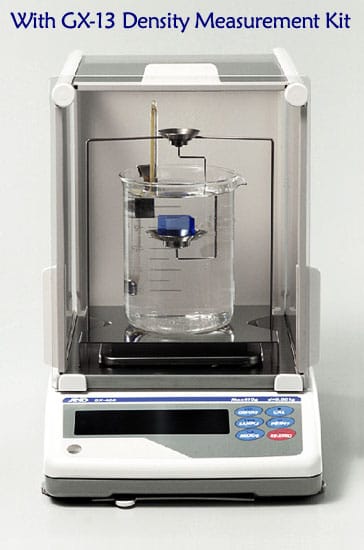

| Density Determination Function |
|
|
| Quick Reference Card |
|
|
| Underhook |
|
|
| Time & Date Function |
|
|
| Large Square Weighing Pan |
|
|
| Comparator Function |
|
|
| Animal Weighing |
|
|
| Capacity Indicator |
|
|
| ACAI Counting Function |
|
|
| Percentage Function |
|
|
| Front Air Bubble Leveling |
|
|
| Standard RS-232C |
|
|
| GLP, GMP, GCP, ISO Compliance Data Output |
|
|
| Splash Proof Keyboard and Display |
|
|
| Display Auto Power Off Function |
|
|
| Aluminum Die-Cast Case |
|
|
Specifications
Notes: The internal mass is equal to (approximately) 500 g. EC Type Approval Confirmed (Approval No. UK2560) Standard Breeze break included for 1mg Minimum weighing value models
|
|
|
